Wireless COFDM UAV Video Transmitter , HDMI Extender Transmitter 70km LOS

70km LOS Wireless COFDM UAV Video Transmitter H.265 for Oil Inspection​

Long range COFDM video transmitter advantages:

• Strong interference:COFDM wireless transmitter is effectively against the multipath interference of signal waveform with the COFDM modulation. When the frequency selective fading occurs due to multipath transmission in the channel, only the subcarriers in the band depression and the signal carried by them are affected. The other subcarriers are not affected. Therefore, the overall bit error rate of the system is lower.
• Anti-multipath fading: COFDM wireless audio video transmitter is effectively against the interference with the multi-carrier technique (COFDM). Compared to the single carrier, multi-carrier inherently resistant to time delay and has strong multipath capability. With joint coding of subcarriers & frequency diversity of the channel, the system’s performance is improved. Therefore, COFDM wireless system is suitable for multi-path environment and fading channel high-speed audio video data transmission.
• LOS & NLOS operation: with strong penetration, strong diffraction & strong anti-interference, COFDM wireless system is suitable for high-speed mobile wireless transmission in NLOS &LOS operation without servo stability control assistance, such as on UAV to mobile vehicle, uav to groun station, UAV to vessle...

Description:

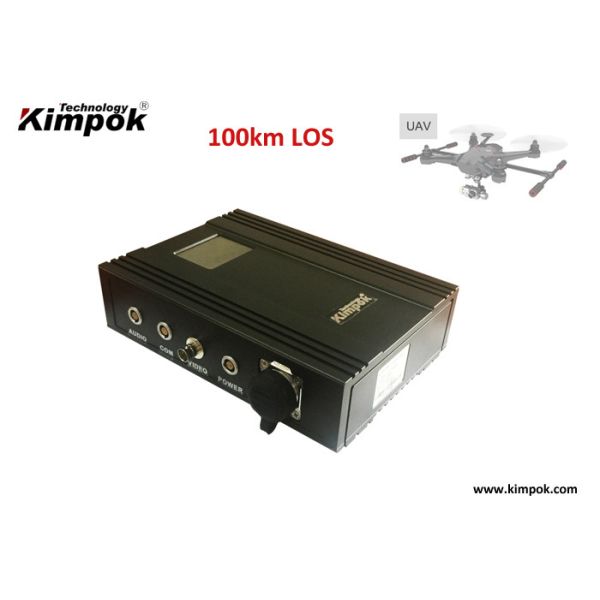

NLOS COFDM wireless video link transmitter (KP-HDT5000) is a new design ultra-low latency COFDM digital wireless video transmitter. It is designed with 2 video ports, HDM-ISDI, and CVBS on the transmitter, which is perfect for analogue or digital cameras.

With 4th generation COFDM, narrow-band, and H.264 encoder technology as its code, KP-HDT5000 sends high definition images ideal for establishing rugged wireless video links in different environments, like mobile and urban environments. The compact design and low consumption make this HD transmitter enable true long range HD video transmission.

Features:

1. COFDM modulation for stable audio video transmission
2. Supporting 2 video input formats (interfaces): HDMI/SDI+CVBS/BNC
3. Strong safety with AES user-defined passwords
4. Compact design, low consumption and ultra low latency
5. Supporting NLOS (non line of sight) and fast moving environments but stable signals transmission
6. Easy operation by digital panel configuration, and LCD display
7. Military & industrial grade

Specification:

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.

Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
